Abstract

Get going quickly with bpy_jupyter!

Still need to install bpy_jupyter? See Installation.

Getting Started

Warning: uv Required

It is strongly suggested to install uv before following this guide, using the uv installation guide.

This is to make use of the ucx``uv ships with the uvx command, which makes it easy to run Python program without prior installation:

$ uvx ruff
Ruff: An extremely fast Python linter and code formatter.

Usage: ruff [OPTIONS] <COMMAND>
...

If you don't want to use uv, feel free to substitute uvx <command> for your preferred method of running <command>.

Starting a Jupyter Kernel

After installing the extension, navigate to Properties -> Scene:

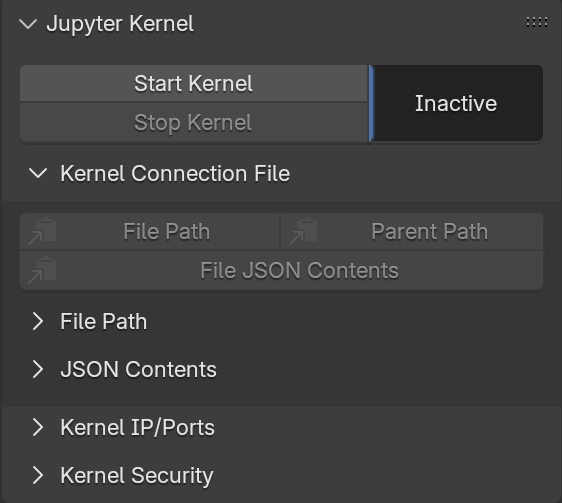

image of default Jupyter kernel panel

Default Extension Panel

To run the kernel, follow these steps:

  1. Press the Start Kernel button.
  2. Press the Kernel Connection File -> (Copy) File Path button.

That's it! You can now use jupyer-console to connect to Blender's running kernel, simply by pasting the connection file path after --existing:

uvx jupyter-console --existing path/to/connection.jsonJupyter console 6.6.3

Python 3.11.9 (main, Sep 11 2024, 06:43:20) [GCC 11.2.1 20220127 (Red Hat 11.2.1-9)]
Type 'copyright', 'credits' or 'license' for more information
IPython 9.2.0 -- An enhanced Interactive Python. Type '?' for help.
Tip: Use `ipython --help-all | less` to view all the IPython configuration options.

In [1]:

Warning: bpy_jupyter Requires Online Access

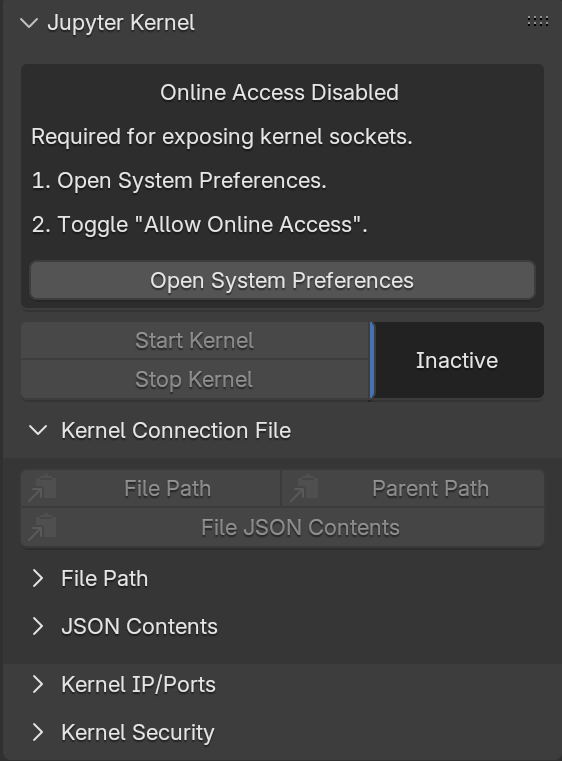

image of default Jupyter kernel panel

If your panel looks like this, then your distribution of Blender doesn't (currently) allow online access!

A running Jupyter kernel creates and listens to network ports, which may be accessible from unexpected places. Anybody capable of connecting to these ports may also capable of arbitrary code execution on your computer.

For this reason, Preferences -> System -> Allow Online Access must be checked in order to start a Jupyter kernel.

Danger

Always check your OS / firewall settings before starting a kernel. Failure to correctly prohibit external connections to kernel ports may allow an attacker to execute arbitrary code on your computer.

It is the responsibility of your system administrator to prevent malicious third-parties from being able to access the network ports opened by bpy_jupyter.

Using a Jupyter Kernel

Under Construction

This section is incomplete.

For now, we suggest browsing the bpy Gallery.

At this point, one may import bpy and enjoy the full power of Blender's Python API. To illustrate this, several concrete examples follow!

Example: Moving the Default Cube

The first thing you might want to try is moving the default cube!

In [1]: import bpy

In [2]: bpy.context.object
Out[2]: bpy.data.objects['Cube']

In [3]: bpy.context.object.location.z
Out[3]: 0.0

In [4]: bpy.context.object.location.z = 2  ## You should see this in Blender!

In [5]: bpy.context.object.location.z
Out[5]: 2.0

Reference

For more examples, see the bpy Gallery.
